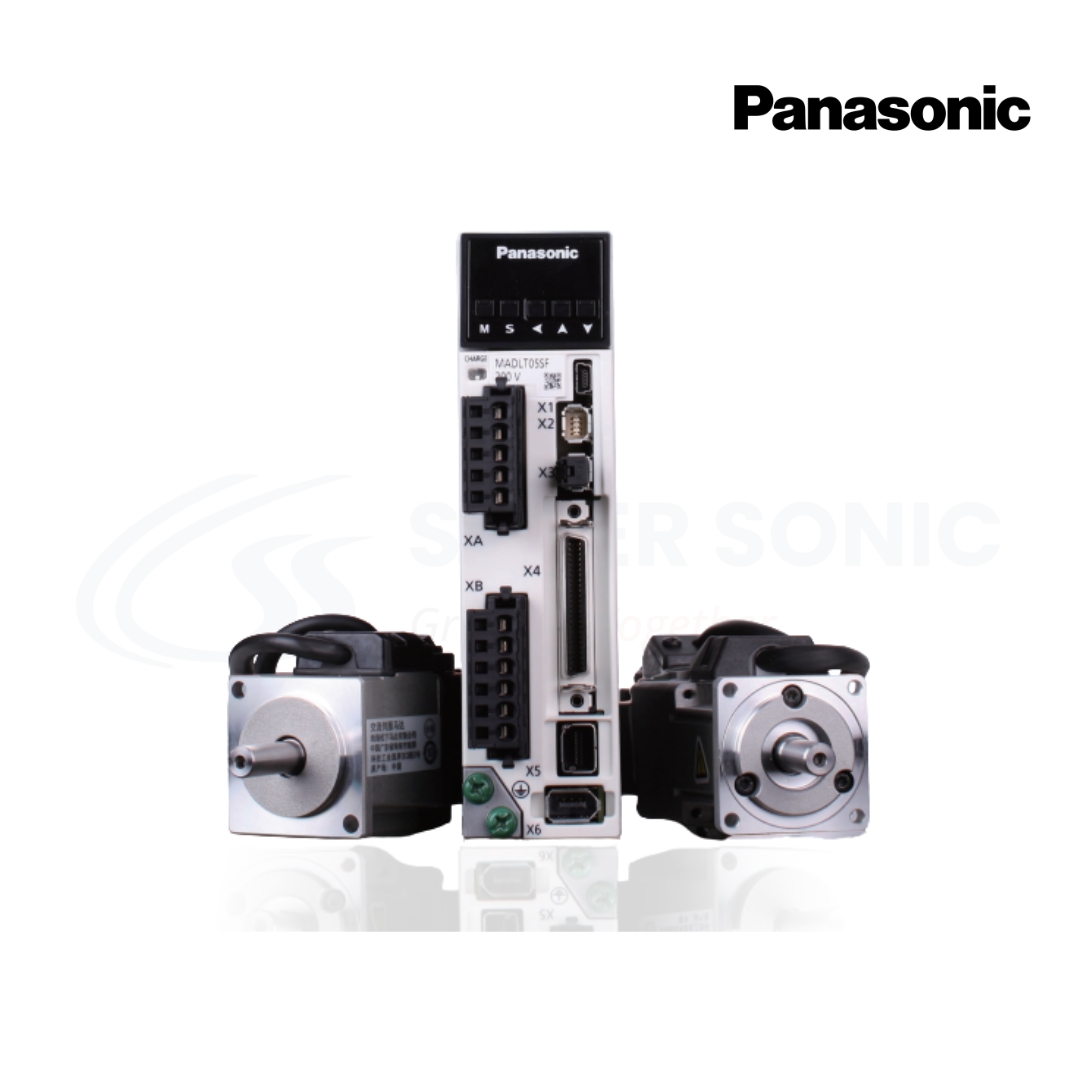

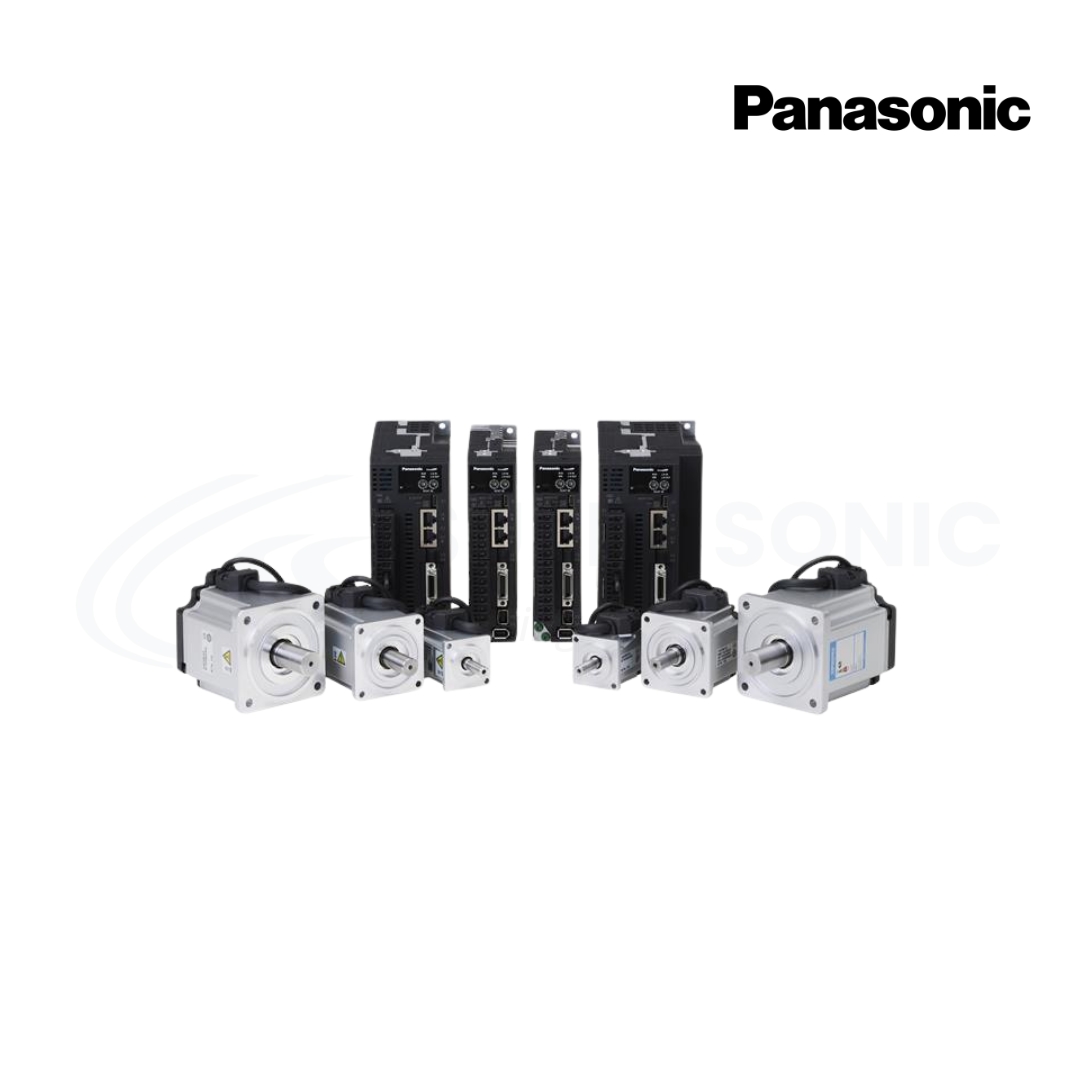

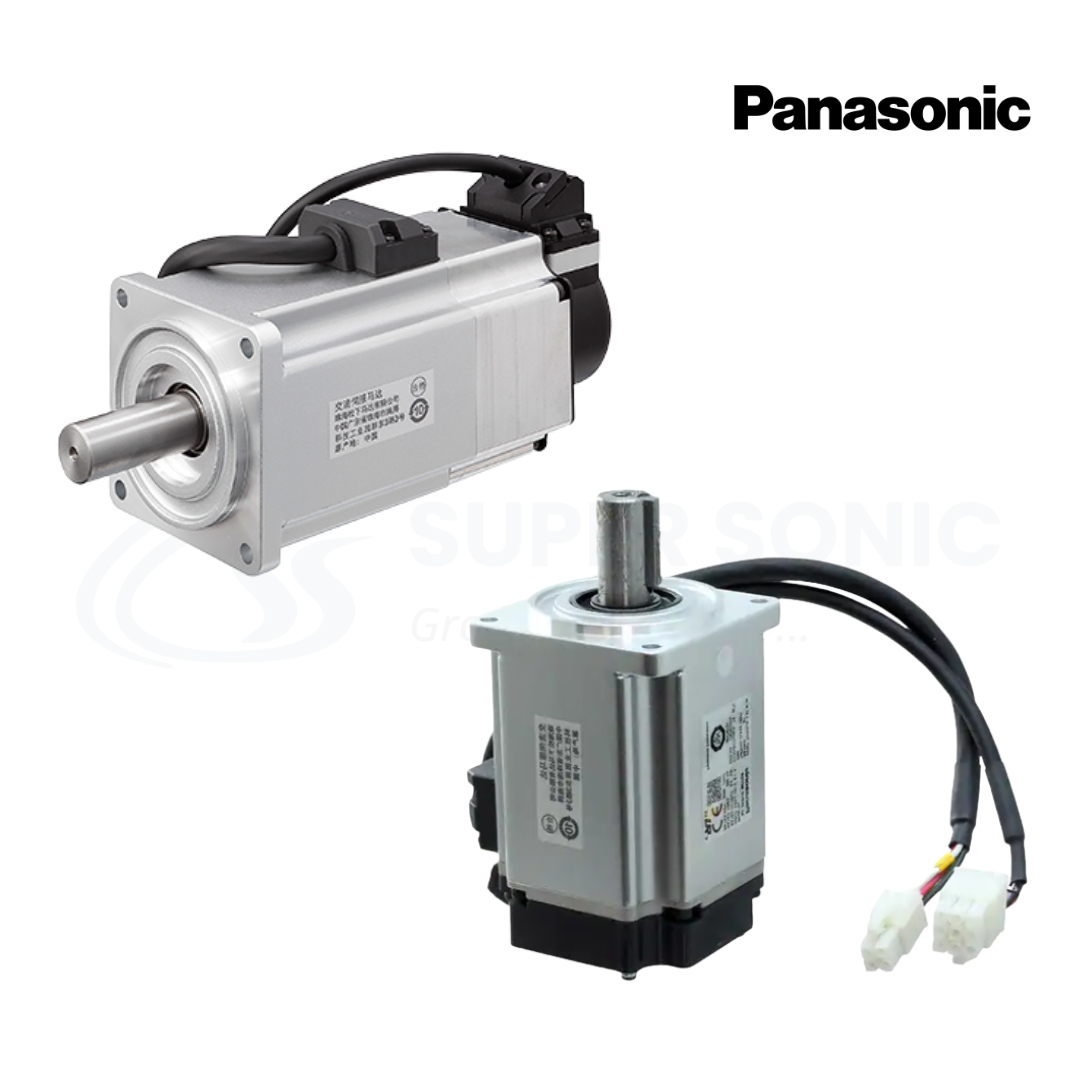

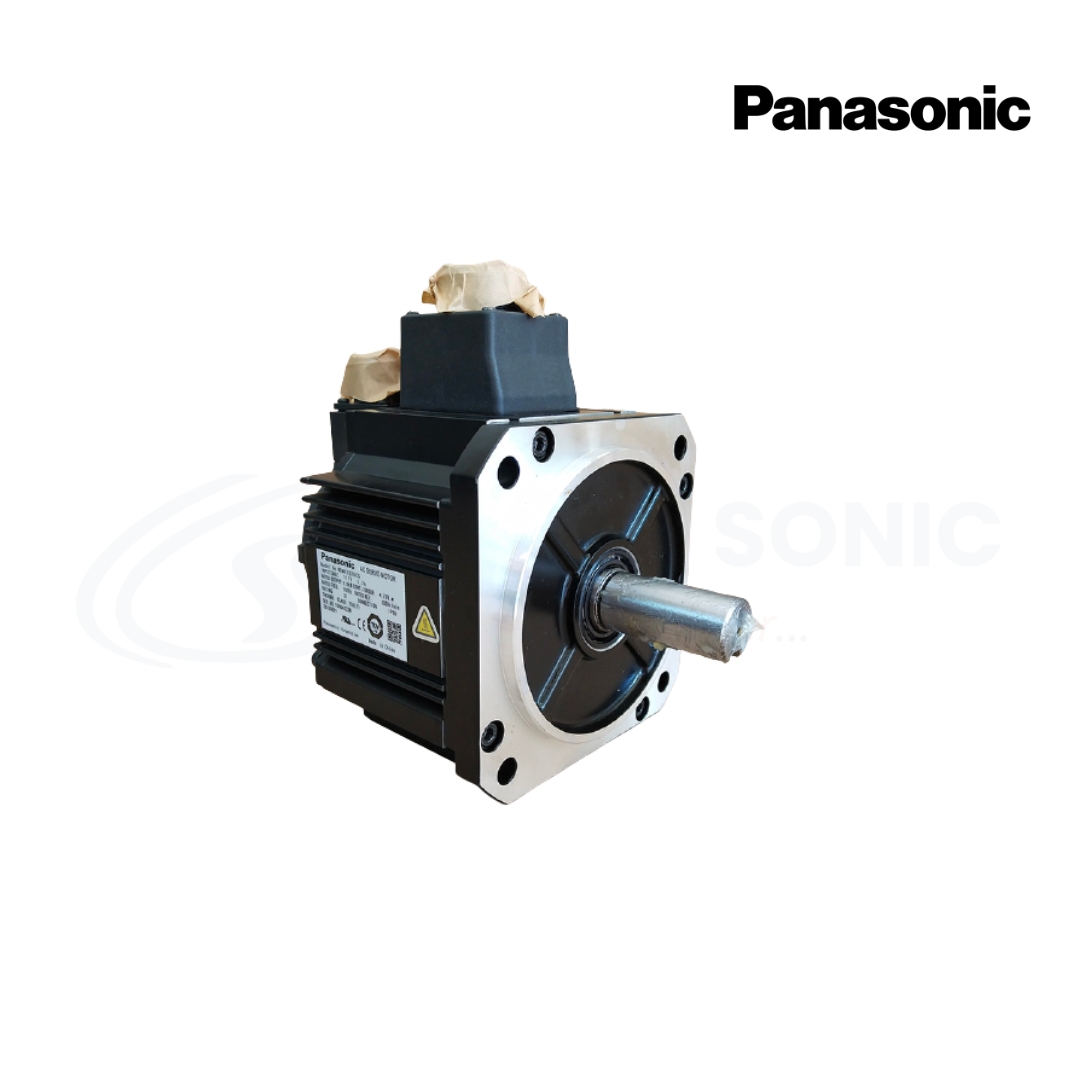

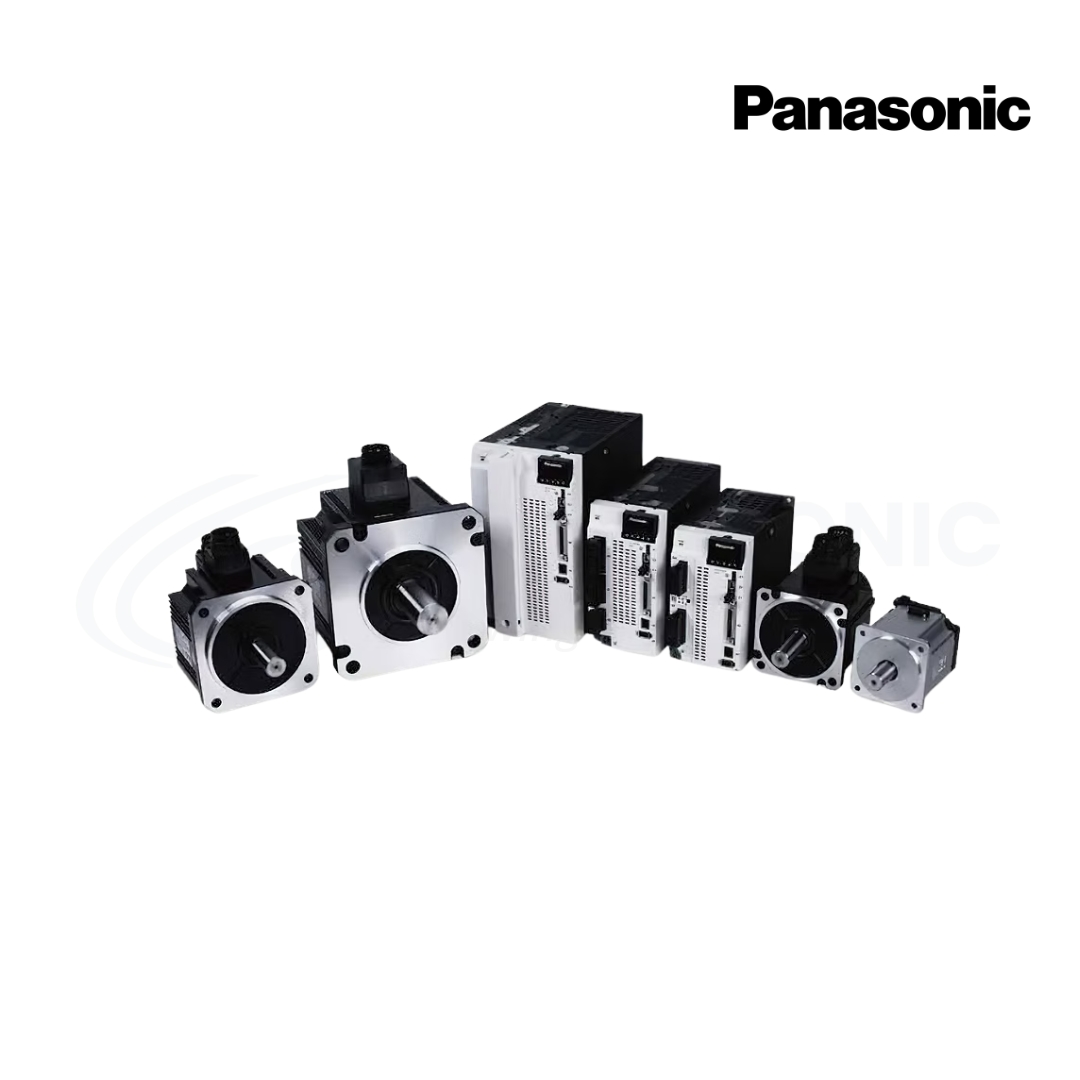

PANASONIC SERVO: MOTOR & DRIVE

Panasonic AC Servo best suited for high speed and high precision positioning have excellent acceleration performance and reliability and allow the digitally controlled operation of equipment. Panasonic provides devices best suited to customer's needs, such as materials and capacitors.

Large power range (50W to 27kW) combined with a light-weight and compact design. Innovative functions to suppress resonance frequencies and vibrations. Multiple control features such as pulse, analogue, and network technology in

real-time communication.

Download Catalogue

Product Features

High-Speed Response: Features an industry-leading velocity response frequency of up to 3.2 kHz to improve feedback loops drastically.
Ultra-High Resolution Encoder: Equipped with a 23-bit encoder providing 8.38 million pulses per revolution for micro-positioning accuracy.
High Rotational Speed: Capable of achieving maximum rotational speeds of up to 6,500 rpm.
Low Cogging Torque: Provides extremely smooth motor rotation by reducing the internal magnetic pulse fluctuations.

Technical Specification

Brand: Panasonic
Rated Power: 50w to 27kw
Frequency response: 3200Hz
High Speed: 100 Mbps
Voltage: AC 100 V/200 V/400 V・ DC 24 V/48 V
Current: 0.8A to 22A
Mounting Type: Chassis Mount
Operating Temperature: 0 ~ 55 Degree Celsius

Products

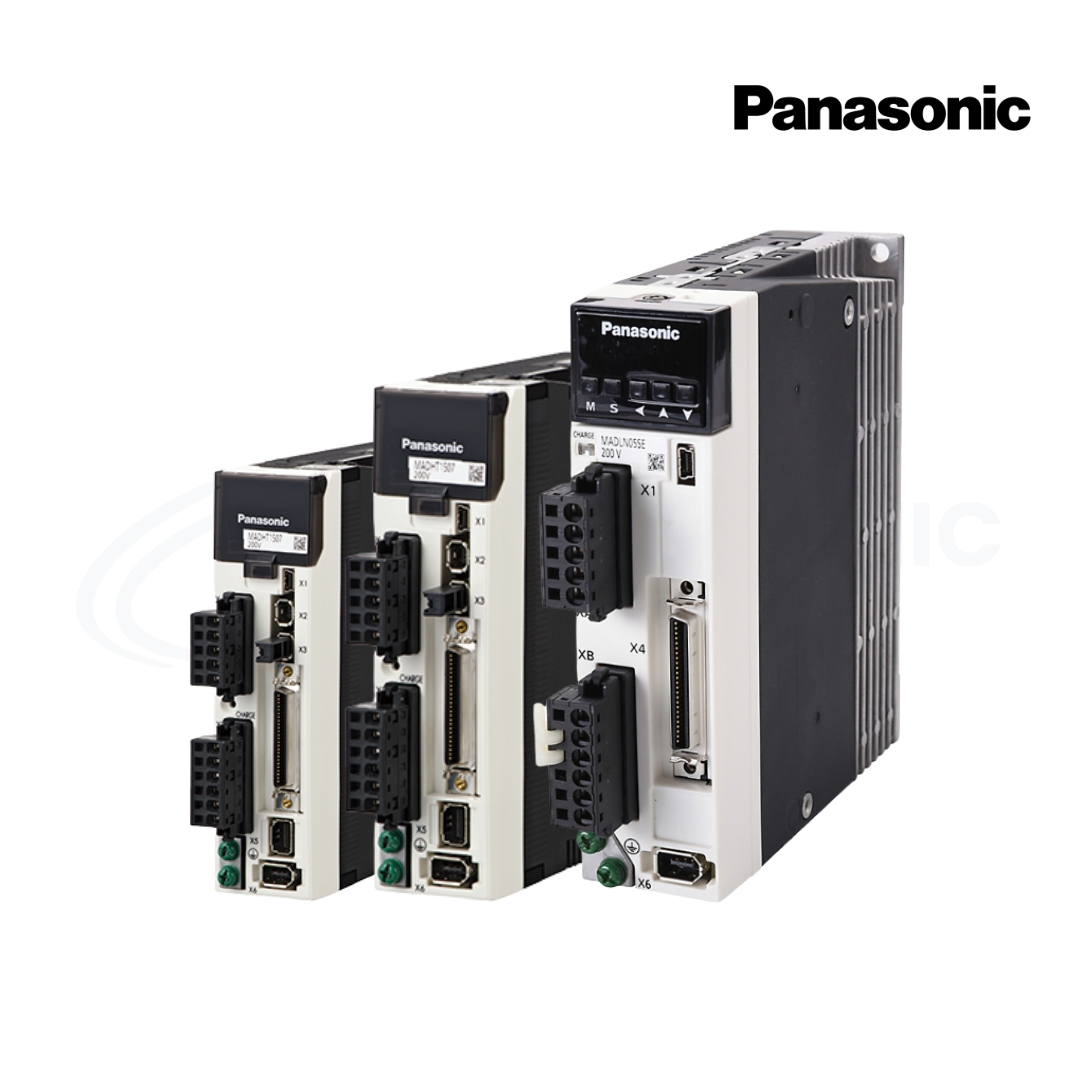

MINAS A6 SERIES

MINAS A6 series AC Servo Motor & Drivers are the brand new servo system that fulfils all requirements from various types of machines such as high-speed, high precision, high performance and easy setup and adjustment.

Model: Puls Output & Ethercat
Rated Power: 50 W to 27 Kw
Motor RPM: 1500 to 6500 rpm
Torque: 0.16NM to 95.5NM
Encoder: 23 bit
Motor Shaft: 22 mm

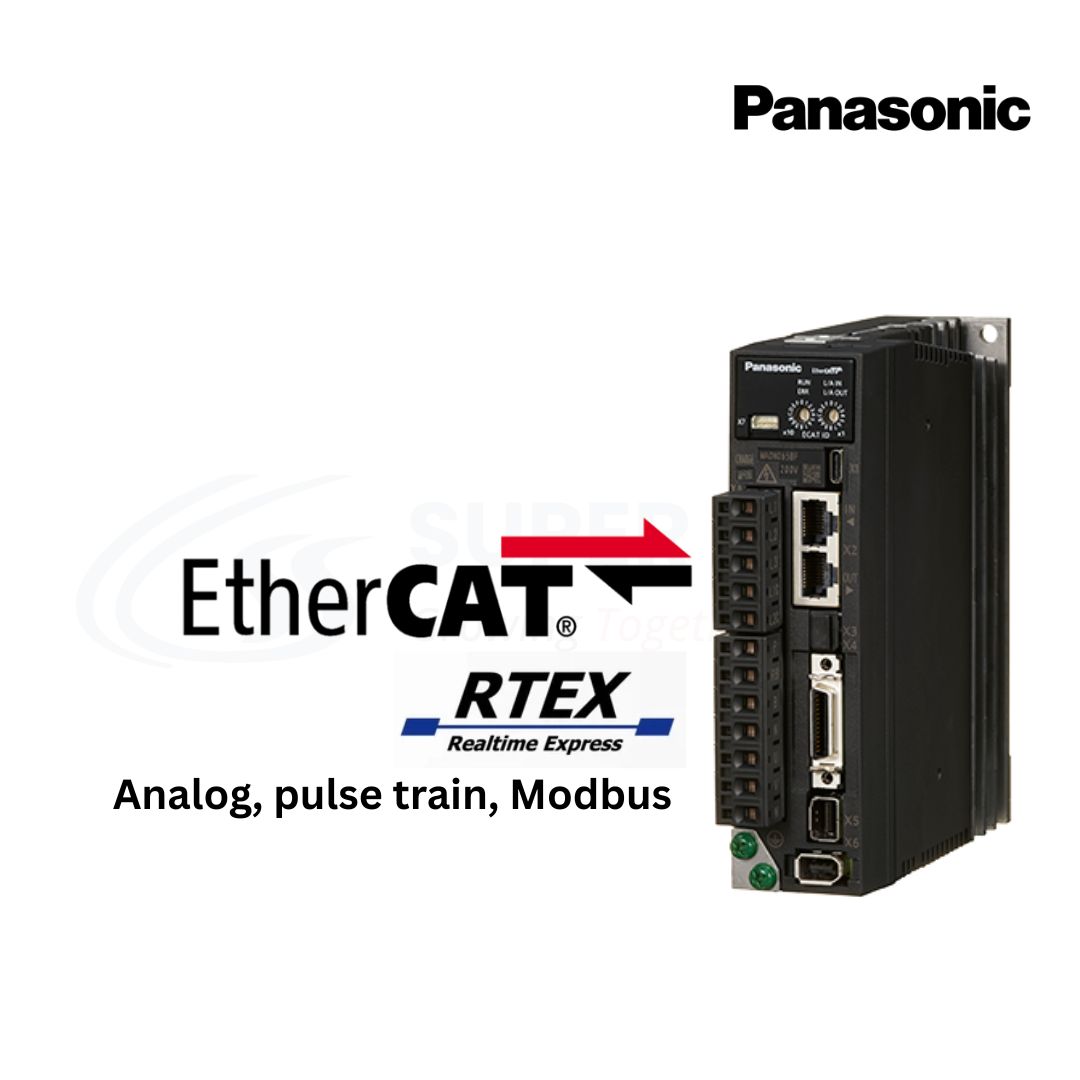

MINAS A6 BC SERIES

Panasonic MINAS A6 BC Servo driver is Advanced EtherCAT servo driver for High-Performance Motion control. Its a smallest EtherCAT servo driver in market. Panasonic EtherCAT servo driver has many in-built supported applications (7 control modes of operation, 32 origin-return modes, 2 synchronous modes, and an asynchronous mode).

Model: EtherCAT
Rated Power: 50 W to 3 Kw
Motor RPM: 2000 to 6000 RPM
Torque: 0.16NM to 95.5NM
Encoder: 20 bit
Motor Shaft: 24 mm

MINAS A7 SERIES

The MINAS A7 achieves the industry’s highest motion performance, follows commands faithfully and provides strong resistance against disturbances. Increased responsiveness to machines enables higher speed and higher precision. The MINAS A7 Servo motors are designed with advanced technology, equipped with AI that automates precise tuning, previously only achievable by human experts.

Model: Puls Output & Ethercat & basic Rtex
Rated Power: 200w / 400w / 750w / 1 kw
Motor RPM: 3000 to 7150 RPM
Speed: 4.0 kHZ or more
Torque: 0.16NM to 3.18NM
Encoder: 27 bit
Motor Shaft: 22 mm
