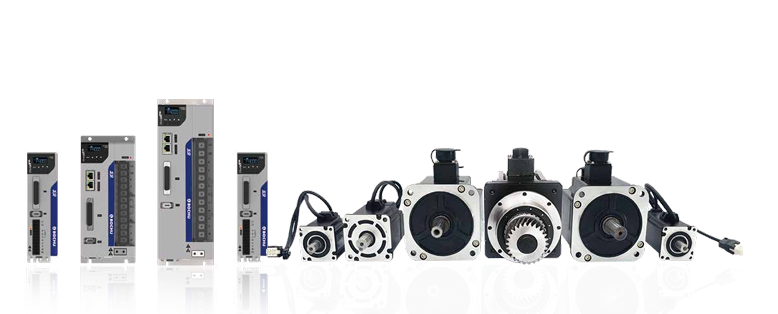

BOCHU SERVO: MOTOR & DRIVE
The Bochu S9, our latest breakthrough in EtherCAT bus servo technology, setting a new standard for excellence. Designed to meet the highest EMC national standards, level 4 certification, the S9 delivers unrivaled performance advantages with its high inertia, big torque, and exceptional speed capabilities. Equipped with an absolute encoder and DB brake as standard, the S9 comprehensively matches with algorithm, elevating cutting efficiency to new heights. Its user-friendly design simplifies debugging processes while ensuring stable and reliable operation. Experience the ultimate value for your investment with the S9.

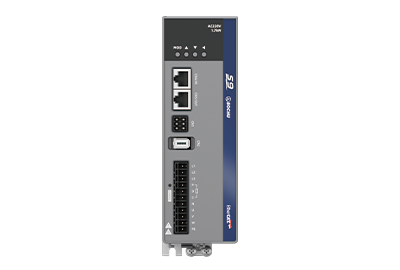

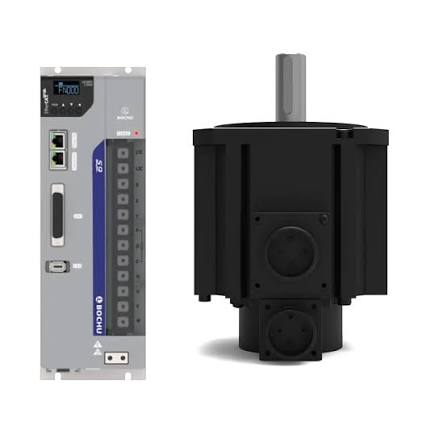

The Bochu S9 Series is a highly specialized EtherCAT bus servo drive and motor combination. It is built to seamlessly pair with Bochu’s FSCUT laser controllers (like the FSCUT 4000E or FSCUT 8000) to deliver exceptionally high torque, rapid response times, and supreme stability during high-speed laser cutting operations.
Product Features
- Developed entirely by Bochu, these servos integrate seamlessly with FSCUT controllers and CypCut/HypCut software. This allows operators to perform "one-click" auto-tuning, resonance suppression, and mechanical parameter adjustments directly from the computer screen, bypassing complex third-party tuning software.
- Utilizes a highly robust digital EtherCAT bus protocol. This ensures ultra-low latency and perfect micro-second synchronization between all machine axes (X1, X2, Y, Z), which is critical for smooth flying cuts and sharp cornering.
- Comes standard with a high-precision multi-turn absolute encoder. The motor remembers its exact physical position even after a complete factory power outage, meaning the operator does not need to perform a "return to zero" or homing sequence when restarting the machine.
- Designed to handle massive spikes in power demand. The motors can output 300% of their rated torque for short bursts, allowing the heavy machine gantry to achieve aggressive acceleration (up to 2.5G) and instant deceleration without triggering an overload alarm.
- The drive actively reads physical feedback from the machine. If a timing belt loosens, a rack-and-pinion gear wears down, or the gantry begins to vibrate, the servo detects this mechanical slippage and sends a real-time warning to the CNC controller before cutting quality is ruined.
- Uses a proprietary acceleration/deceleration curve that smooths out aggressive directional changes. This maximizes cutting speed while drastically reducing mechanical wear and tear on the machine's transmission parts.
- The servo drives are built with a slim profile and optimized heat sinks. This allows multiple drives to be mounted tightly side-by-side inside the electrical cabinet, saving significant space.
- Standard on Z-axis configurations and available for others, the dynamic brake instantly locks the motor shaft if power is suddenly lost. This prevents the heavy laser cutting head from dropping and crashing into the metal sheet.

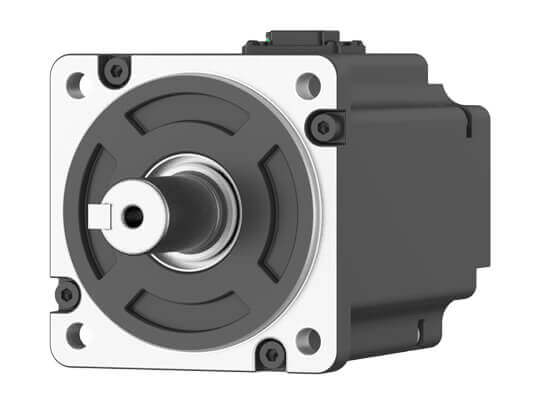

- The servo motors are fully sealed against industrial metal dust, debris, and water splashes, ensuring reliable long-term operation in harsh metal fabrication environments.
Technical Specification
- EtherCAT Bus (Ensures ultra-low latency and real-time synchronization with the laser controller).
- 23-bit multi-loop absolute encoder (Remembers the exact machine position even after a power outage, eliminating the need to re-home the machine).
- Can handle up to 300% maximum torque output, allowing for aggressive acceleration up to 2.5G without tripping alarms.
- IP65 rated, making the motors completely sealed against industrial metal dust and moisture.
- Features true "Plug and Play" compatibility with Bochu's CypCut and HypCut software, allowing for one-click automatic servo tuning and resonance suppression directly from the PC screen.
Models
Available Series & Models

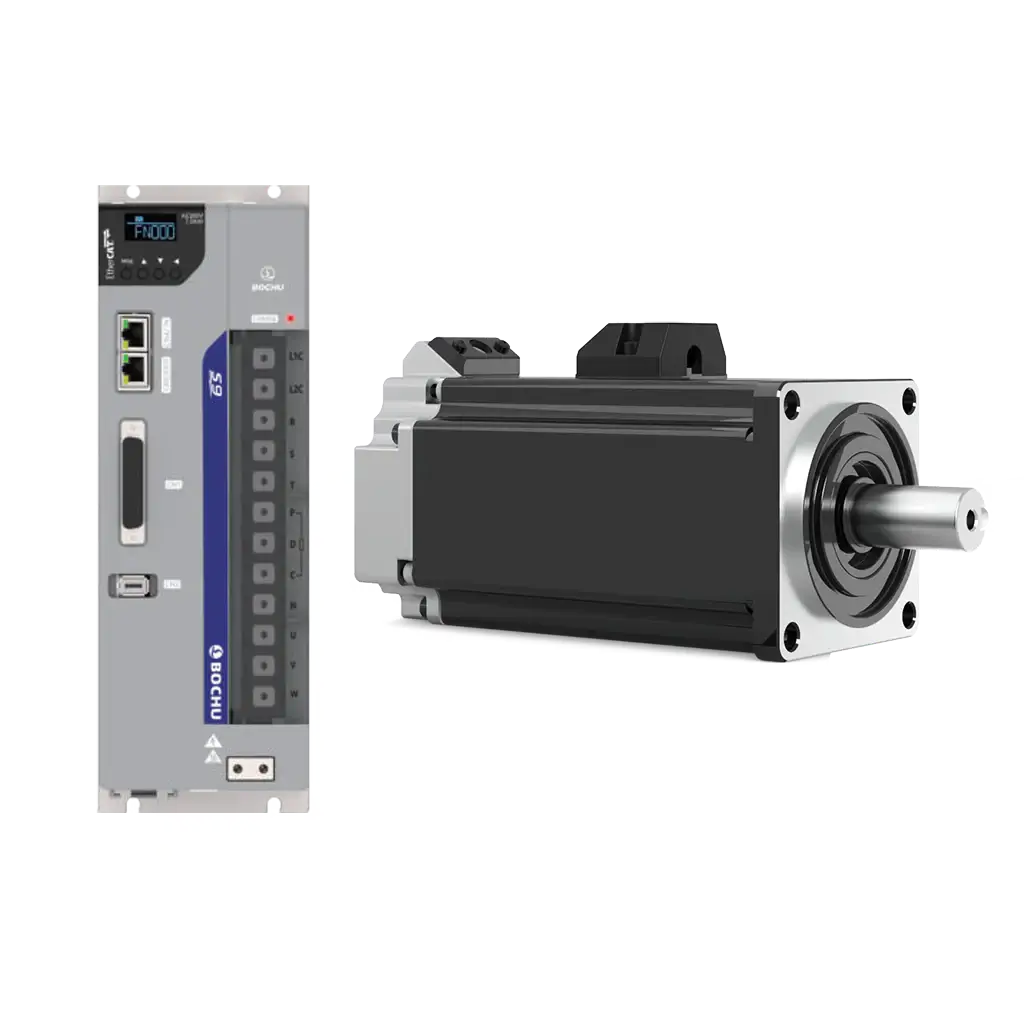

BMS-04BE-A (400W-220V)
- 3000rpm
- 6000rpm
- 1.27 Nm
- 3.81 Nm
- 60mm
- Z-axis, focus axes, compact rotaries
BMS-08BE-A (750W-220V)
- 3000rpm
- 6000rpm
- 2.40 Nm
- 7.20 Nm
- 80mm
- Z-axis (heavy heads), X-axis, tube chucks
BMS-11BE-A (1.1KW-220V)
- 2000 rpm
- 5000 rpm
- 5.39 Nm
- 16.17 Nm
- 100/130 mm
- X-axis, standard Y1/Y2 dual drives
BMS-17BE-A (1.7KW-220V)
- 2000 rpm
- 5000 rpm
- 8.34 Nm
- 25.02 Nm
- 130 mm
- Main gantry Y1/Y2 axes (3015 / 4020 beds)
BMS-24BE-A (2.4KW-380V)
- 2000 rpm
- 5000 rpm
- 11.5 Nm
- 32.2 Nm
- 130 mm
- Heavy-duty X-axis and Y-axis gantries
More Information
Application:
- Flatbed Sheet Metal Fiber Laser Cutting Machines
- Tube & Pipe Fiber Laser Cutting Machines
- 3D Bevel Laser Cutting Machines (5-Axis)
- Automatic Exchange Table (Pallet Changer) Systems
- Coil-Fed Laser Blanking Production Lines
- Automated Sheet Loading/Unloading Systems
- Laser Welding & Cladding Stations
